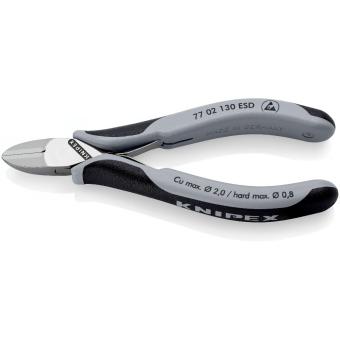

KNIPEX 77 02 130 ESD KNIPEX Electronics Diagonal Cutters ESD

• Robust, stress-optimized design with a box joint and zero-play joint
• Slim sleeves raised towards the pliers head for a fine and comfortable grip between thumb and index finger
• Handles are electrically conductive 13 dissipative
• Low force required due to high gear ratio
• Stress-optimized design for a more direct working feel
• Low-friction double spring for smooth and even opening
• The mirror polish, combined with a fine oil film, provides good rust protection 13 no circuit disruption due to flaking chrome parts
• Cutting edges additionally laser-hardened, cutting edge hardness approx. 62 HRC
• Round head with small bevel

Head: mirror-polished
Handles: with multi-component sleeves
Weight: 81 g
Dimensions: 130 x 50 x 18 mm
Standard: DIN ISO 9654 DIN EN 61 340-5
Cutting values for medium-hard steel Wire (diameter): Ø 1.5 mm
Cutting capacity for hard wire (diameter): Ø 0.8 mm
Cutting capacity for piano wire (diameter): Ø 0.0 mm
Cutting capacity for soft wire (diameter): Ø 0.2 mm
Jaw length (B): 16.2 mm
Jaw thickness (at joint) (D): 8.5 mm
Head width (A): 13 mm
Cutting edge length (C): 16.2 mm
ESD: yes
