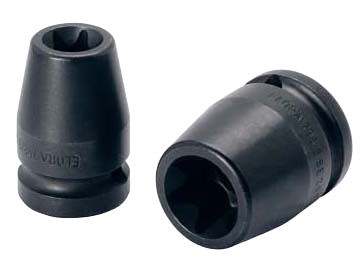

    ELORA 798-E... Impact Sockets 1/2"

    Impact Sockets 1/2" Code
    Details
    • for outside TORX®screws
    • for power tools
    • special steel, phosphated
    • female square according to DIN 3121-G 12,5, ISO 1174
    • TORX®= reg. trademark of Acument Intellectual Properties, LLC. USA
    Manufacturer ↓ ↑

    ELORA – Werkzeugfabrik GmbH
    Am Blaffertsberg 33
    42899 Remscheid
    Germany
    Tel.: +49 2191 5627-0
    Mail: [email protected]

    Availability:
     Ready for shipping
     Only some items on stock - order quickly!
     This item is not on stock and has to be re-ordered.
    Explanation for the table
    *)  incl. tax , plus shipping

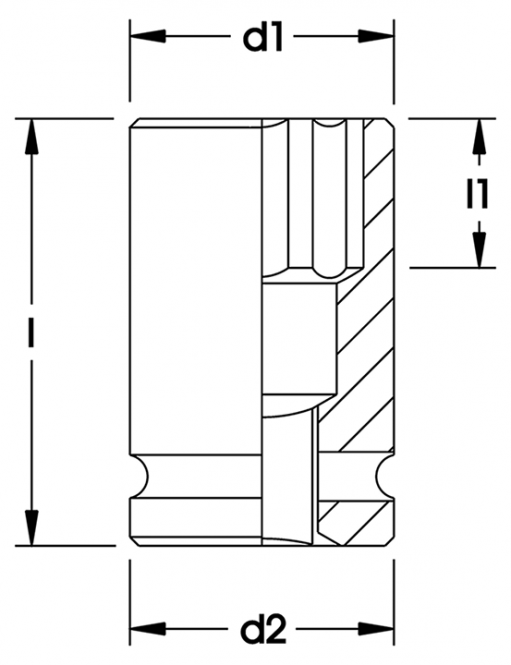

    Code Number Torx size corner to corner
    mm    		 Length
    mm    		 l1
    mm    		 d1
    mm    		 Weight
    kg    		 PU € More stock add
    ELORA0798000105000 798-E10 9,42 38 9 15 0,084 1 11,58 *)
    d2 mm: 25
    Locking Pin : 7903-20
    Locking Ring : 7904-20
    Productinformation:
    Attention:
    locking pin and locking ring are not included!
    ELORA0798000145000 798-E14 12,90 38 12 18,5 0,086 1 11,58 *)
    d2 mm: 25
    Locking Pin : 7903-20
    Locking Ring : 7904-20
    Productinformation:
    Attention:
    locking pin and locking ring are not included!
    ELORA0798000185000 798-E18 16,70 38 12 22 0,09 1 12,17 *)
    d2 mm: 25
    Locking Pin : 7903-20
    Locking Ring : 7904-20
    Productinformation:
    Attention:
    locking pin and locking ring are not included!
    ELORA0798000205000 798-E20 18,45 38 13 25 0,128 1 12,63 *)
    d2 mm: 30
    Locking Pin : 7903-25
    Locking Ring : 7904-24
    Productinformation:
    Attention:
    locking pin and locking ring are not included!
    ELORA0798000245000 798-E24 22,16 38 17 28,5 0,142 1 13,57 *)
    d2 mm: 30
    Locking Pin : 7903-25
    Locking Ring : 7904-24
    Productinformation:
    Attention:
    locking pin and locking ring are not included!
    Code Number
    ELORA0798000105000 798-E10
    Details
    Torx size corner to corner mm 9,42
    Length mm 38
    l1 mm 9
    d1 mm 15
    d2 mm 25
    Locking Pin 7903-20
    Locking Ring 7904-20
    Weight kg0,084
    PU1
    € 11,58
    Productinformation:
    Attention:
    locking pin and locking ring are not included!
    add
    ELORA0798000145000 798-E14
    Details
    Torx size corner to corner mm 12,90
    Length mm 38
    l1 mm 12
    d1 mm 18,5
    d2 mm 25
    Locking Pin 7903-20
    Locking Ring 7904-20
    Weight kg0,086
    PU1
    € 11,58
    Productinformation:
    Attention:
    locking pin and locking ring are not included!
    add
    ELORA0798000185000 798-E18
    Details
    Torx size corner to corner mm 16,70
    Length mm 38
    l1 mm 12
    d1 mm 22
    d2 mm 25
    Locking Pin 7903-20
    Locking Ring 7904-20
    Weight kg0,09
    PU1
    € 12,17
    Productinformation:
    Attention:
    locking pin and locking ring are not included!
    add
    ELORA0798000205000 798-E20
    Details
    Torx size corner to corner mm 18,45
    Length mm 38
    l1 mm 13
    d1 mm 25
    d2 mm 30
    Locking Pin 7903-25
    Locking Ring 7904-24
    Weight kg0,128
    PU1
    € 12,63
    Productinformation:
    Attention:
    locking pin and locking ring are not included!
    add
    ELORA0798000245000 798-E24
    Details
    Torx size corner to corner mm 22,16
    Length mm 38
    l1 mm 17
    d1 mm 28,5
    d2 mm 30
    Locking Pin 7903-25
    Locking Ring 7904-24
    Weight kg0,142
    PU1
    € 13,57
    Productinformation:
    Attention:
    locking pin and locking ring are not included!
    add
