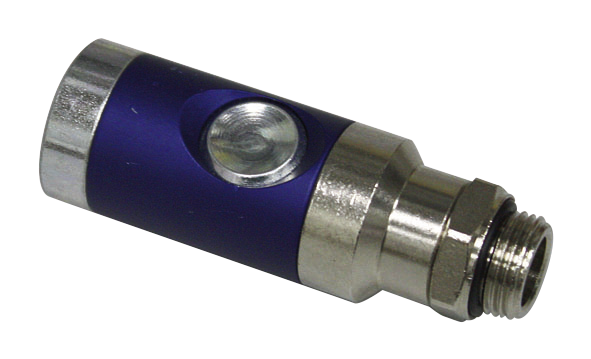

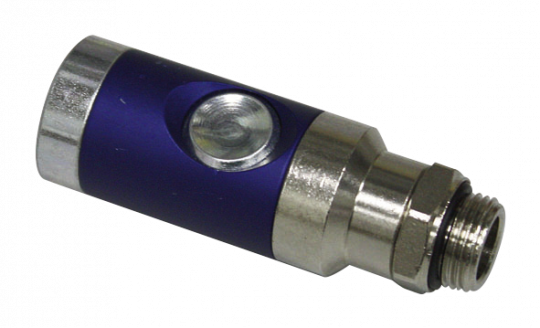

ELORA 5025-..., 5026-... Safety Couplings with Push-Button
Details
- high-quality, robust and durable quick release coupling in safety execution
- one-hand operation
- unlocking by 2 times pressing the push-button
- first push for ventilation oft he coupling, but it remains locked
- second push for releasing the coupling, thus preventing the ''whiplash effect''
- safety version corresponding to ISO 4414/EN 983
- housing made of aluminium, head and valve of hardened steel, zinc plated
- inner parts made of stainless steel, thread made of brass, nickel plated
- max. pressure 12 bar
- air flow 1800 l/min
ELORA
Manufacturer
↓
↑
ELORA – Werkzeugfabrik GmbH
Am Blaffertsberg 33
42899 Remscheid
Germany
Tel.: +49 2191 5627-0
Mail: [email protected]
ELORA – Werkzeugfabrik GmbH
Am Blaffertsberg 33
42899 Remscheid
Germany
Tel.: +49 2191 5627-0
Mail: [email protected]
Availability:
| Ready for shipping | |
| Only some items on stock - order quickly! | |
| This item is not on stock and has to be re-ordered. |
| Code | Number | Connection |
Length mm |
Weight kg |
PU | € | stock | add |
|---|---|---|---|---|---|---|---|---|
| ELORA5025000090000 | 5025-9 | Ø 9 mm hose connection | 900 | 0,14 | 1 | 51,93 *) | ||
| ELORA5025000130000 | 5025-13 | Ø 13 mm hose connection | 950 | 0,14 | 1 | 56,65 *) | ||
| ELORA5026000140000 | 5026-I 1/4 | 1/4' female screw thread | 750 | 0,14 | 1 | 51,93 *) | ||
| ELORA5026000380000 | 5026-I 3/8 | 3/8' female screw thread | 750 | 0,14 | 1 | 51,93 *) | ||
| ELORA5026000120000 | 5026-I 1/2 | 1/2' female screw thread | 750 | 0,14 | 1 | 56,65 *) | ||
| ELORA5026000380001 | 5026-A 3/8 | 3/8' external screw thread | 700 | 0,14 | 1 | 51,93 *) | ||
| ELORA5026000120001 | 5026-A 1/2 | 1/2' external screw thread | 750 | 0,14 | 1 | 51,93 *) |
| Code | Number | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ELORA5025000090000 | 5025-9 | ||||||||||||||||||||||
|
|||||||||||||||||||||||
| ELORA5025000130000 | 5025-13 | ||||||||||||||||||||||
|
|||||||||||||||||||||||
| ELORA5026000140000 | 5026-I 1/4 | ||||||||||||||||||||||
|
|||||||||||||||||||||||
| ELORA5026000380000 | 5026-I 3/8 | ||||||||||||||||||||||
|
|||||||||||||||||||||||
| ELORA5026000120000 | 5026-I 1/2 | ||||||||||||||||||||||
|
|||||||||||||||||||||||
| ELORA5026000380001 | 5026-A 3/8 | ||||||||||||||||||||||
|
|||||||||||||||||||||||
| ELORA5026000120001 | 5026-A 1/2 | ||||||||||||||||||||||
|
|||||||||||||||||||||||
