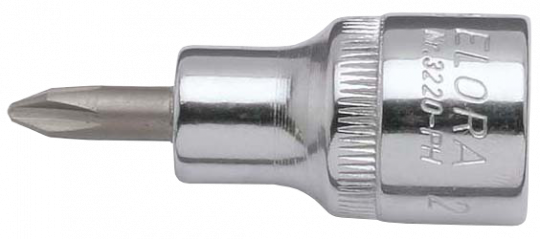

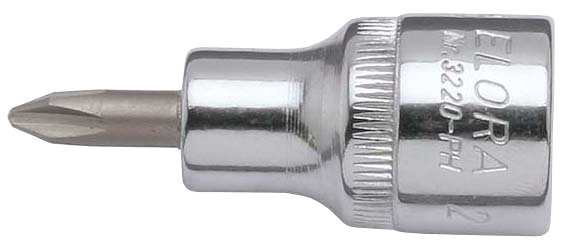

ELORA 3220-PH... Screwdriver Sockets 1/2"
Details
- for cross slotted screws
- chrome-plated, polished
- knurled
- holder made of ELORA-Chrome-Vanadium 31CrV3 / 1.2208
- female square according to DIN 3120-C 12,5, ISO 1174, with ball retaining groove
- blade made of ELORA-Vanadium special steel, gunmetal finished
- blade according to DIN ISO 8764-1 PH
ELORA
Manufacturer
↓
↑
ELORA – Werkzeugfabrik GmbH
Am Blaffertsberg 33
42899 Remscheid
Germany
Tel.: +49 2191 5627-0
Mail: [email protected]
ELORA – Werkzeugfabrik GmbH
Am Blaffertsberg 33
42899 Remscheid
Germany
Tel.: +49 2191 5627-0
Mail: [email protected]
Availability:
| Ready for shipping | |
| Only some items on stock - order quickly! | |
| This item is not on stock and has to be re-ordered. |
| Code | Number | Sizes of threads mm |
Length mm |
l1 mm |
d mm |
Weight kg |
PU | € | stock | add |
|---|---|---|---|---|---|---|---|---|---|---|
| ELORA3220000022000 | 3220-PH2 | 3,1-5,2 | 56 | 17,0 | 23,0 | 0,075 | 1 | 12,95 *) | ||
| ELORA3220000032000 | 3220-PH3 | 5,3-7,2 | 56 | 17,0 | 23,0 | 0,075 | 1 | 12,95 *) | ||
| ELORA3220000042000 | 3220-PH4 | 7,3-12,7 | 56 | 17,0 | 23,0 | 0,08 | 1 | 12,95 *) |
| Code | Number | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ELORA3220000022000 | 3220-PH2 | ||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| ELORA3220000032000 | 3220-PH3 | ||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
| ELORA3220000042000 | 3220-PH4 | ||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||
