Features:
- O-Ø: 2,0 mm
- SØ: E 6,3 mm
- OAL: 84 mm
- Effective L.: 14 mm
- :
- :

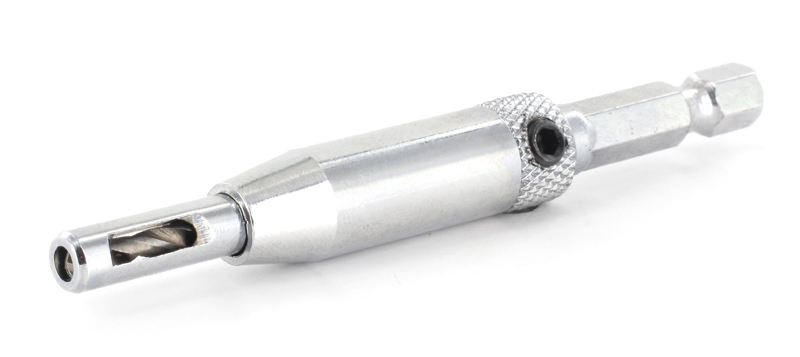

Self-centreing hinge boring bit
Quality classification: Classic
The description of the tool design: Self-centring hinge boring bit for power drill. Equipped with a guide bush containing a spring and core drill HSS with revaled tip
Tool material: Drill HSS
Recommended r.p.m. and specific example for the most common diameters in the according field of application: 500 - 1000 min-1. e.g. Ø 2,0 mm 1000 min-1 in MDF
Description of application: The guide bush will be inserted in the screw hole of a fitting or a hinge. The guide bush will centre itself in the screw hole of the fitting or the hinge
Practical advice and specialty of the tool: You can precisely locate the hinge screw using this countersink hole in this hinge
