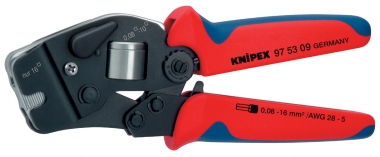

97 53 09 Self-Adjusting Crimping Pliers for wire ferrules
For crimping wire ferrules according to DIN 46228 parts 1 + 4. Self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die. Frontal insertion of the wire ferrules into the pliers. Repetitive, high crimping quality due to integral lock (self-releasing mechanism). Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable. Optimum transmission of force thanks to toggle lever for fatigue-reduced operation. Handy shape and low weight provide high operation comfort. compression from 0.08 - 10.0 and 16.0 mm² in one profile. with selector lever for setting the crimping area either to 0.08 - 10 mm² or 16 mm². suitable in particular for all twin wire ferrules up to 2 x 6 mm² or 2 x AWG 8.
Applications: Wire ferrulesCapacity in square millimetres: 0.08??10?/ 16 mm²Number of crimping positions: 1AWG: 28??5
Technical features:
- For crimping wire ferrules according to DIN 46228 parts 1 + 4
- Self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die
- Frontal insertion of the wire ferrules into the pliers
- Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
- Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable
- Optimum transmission of force thanks to toggle lever for fatigue-reduced operation
- Handy shape and low weight provide high operation comfort
