FAMAG 1664.050 TCT Bormax³ Prima (Pilot Guided), Ø 50 mm

Clean drilling at many angles in all wood materials like European and exotic hard wood (also Bongossi), MDF, coated and uncoated chipboards, as well as many plastics, such as acrylic glass, Corian, GFRP, HPL coating, polycarbonate, PVC and Trespa board

131,76 €/piece
incl. tax, plus shipping

More information

FAMAG 1599.310 Brad Point Drill Bit, HSS-G, Extra Long, Ø 10 mm Machine Drill with brad point and cutting lips, extra long, Ø=10mm

For exact drilling in all, particularly hard materials. Also suitable for some plastics, such as acrylic glass, Corian®, GFRP, HPL coating, polycarbonate, PVC and Trespa® board. Specially designed chip flutes guarantee a good chip removal, you receive best results when drilling deep holes

FAMAG 1599.310 First class version extra long, fully ground quality with two main edges and two cutting lips. Internally ground special spiral for very good chip removal, ground by robots on CNC-machines

48,15 €/piece
incl. tax, plus shipping

More information

FAMAG 1607.606 Spiral Slot Milling Cutter, Ø 6 pcs. Set in wooden case Ø 6, 8, 10, 12, 14, 16 mm, shank Ø 13 mm mm 6 pcs. Set in wooden case RH version. Ø 6, 8, 10, 12, 14 and 16 mm

Milling of slots in soft wood and limited in European hard wood with a slot drilling machine. Higher cutting rate and ideal removal of the chips due to the twisted geometry of the main cutting edges

Spiral Slot Miling Cutter with Spiral Flute

161,08 €/piece
incl. tax, plus shipping

More information

FAMAG 1599.211 Brad Point Drill Bit, HSS-G, Extra Long, Ø 11 mm Machine Drill with brad point and cutting lips, extra long, Ø=11mm

For exact drilling in all, particularly hard materials. Also suitable for some plastics, such as acrylic glass, Corian®, GFRP, HPL coating, polycarbonate, PVC and Trespa® board. Specially designed chip flutes guarantee a good chip removal, you receive best results when drilling deep holes

FAMAG 1599.211 First class version extra long, fully ground quality with two main edges and two cutting lips. Internally ground special spiral for very good chip removal, ground by robots on CNC-machines

42,69 €/piece
incl. tax, plus shipping

More information

FAMAG 1594.050 Brad Point Drill Bit, HSS-G, Ø 5,0 mm Machine Drill with brad point and cutting lips, HSS, Ø=5,0mm

For exact drilling in all, particularly hard materials. Also suitable for some plastics, like acrylic glass, Corian®, GFRP, HPL coating, polycarbonate, PVC and Trespa® board. Specially designed flutes ensure a very good chip removal

Premium version of fully ground quality with two main edges and two cutting lips. Special internally ground spiral for very good chip removal. Ground by robots on CNC-machines

6,75 €/piece
incl. tax, plus shipping

More information

FAMAG 1624.004 Bormax® 2.0 Prima (Pilot Guided), Ø pre-drill bit mm starter, Pilot guided Bormax®, Ø=4mm

The pilot-drill bit is ideal for drilling at an angle which is not 90° in workpieces surface, which occurs for example in the construction of staircase. Can be used with the centre point as traditional Bormax

Pilot guided Bormax®

3,86 €/piece
incl. tax, plus shipping

More information

FAMAG 1622.229 Bormax® 2.0, Forstner Bit [INCH], Ø 1 1/4 inch Bormax®, Forstner Bit, Ø=1 1/4 inch

Rapid drilling in soft wood, European hard wood, chipboard, MDF etc. Rapid chipping of solid wood and chipboards. Clearly less effort is needed and boring is more rapid than with the usual Forstner bit

Forstner Bit with wave-form cutting teeth, two main cutting edges and brad point

36,47 €/piece
incl. tax, plus shipping

More information

FAMAG 1616.009 Disc + Plug Cutter, Ø 9 mm Disc + Plug Cutter, Ø=9mm

For the production of plugs for filling knot holes or fixing partial wood damage in combination with Bormax®. For precise fitting use FAMAG drill bits

Twofold by robots relief ground main edges and circumference cutters. Effective length of the plug max. 75 mm, if lateral ejection is required the effective length of the plug is max. 40 mm

91,14 €/piece
incl. tax, plus shipping

More information

FAMAG 1775.016 Countersink, with Pointed Angle 90°, HSS, Ø 16 Machine Countersink, Ø=16mm, Length=90mm

Countersinking in all sorts of wood, also suitable for veneered, laminated panels and many plastics like acrylic glass, Corian®, GFRP, HPL coating, polycarbonate, PVC and Trespa® board

Countersink with 7 edges and point angle, irregular pitch and parallel shank. Now with fully ground tool head

28,10 €/piece
incl. tax, plus shipping

More information

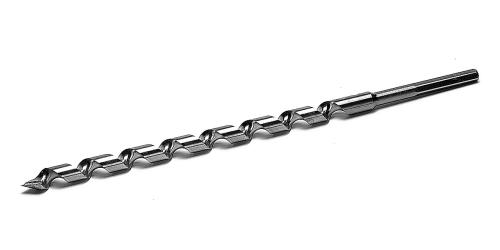

FAMAG 1420.428 Special Auger Bit for Joinery Machines, Ø 28 mm Special auger bit for joinery machines, Ø=28mm

For drilling in all soft woods on joinery machines. Due to the spiral's especially sturdy geometry it is also possible to drill exactly into thick joists. Due to the negative tolerance of the drill-Ø a tight fit is guaranteed

Premium one edged auger bit with special ground pevelled tip and very dimensionally stable spirals. Premium coating to grant minimal friction

81,56 €/piece
incl. tax, plus shipping

More information
